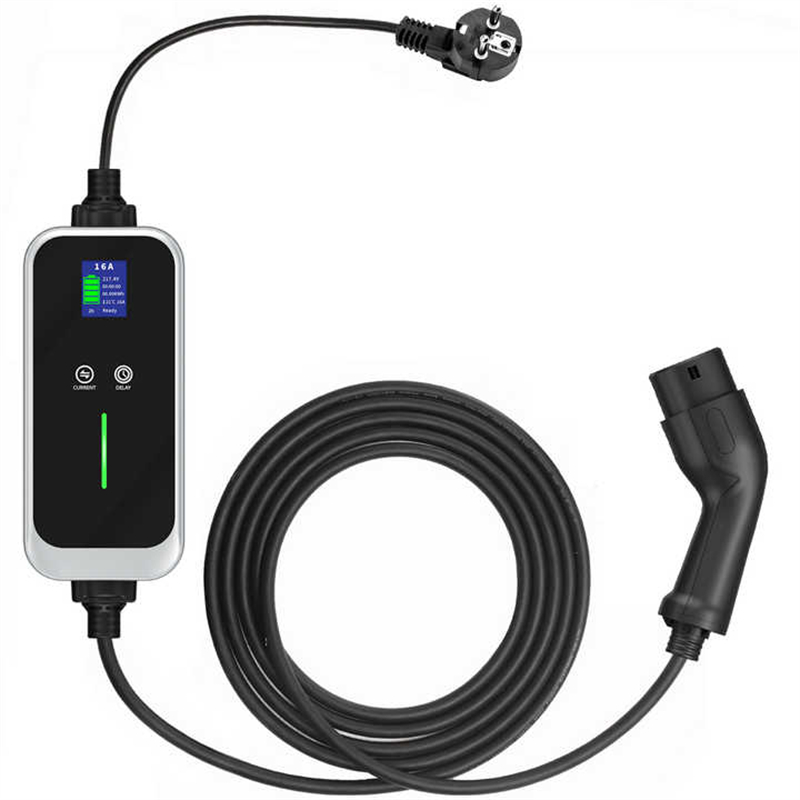

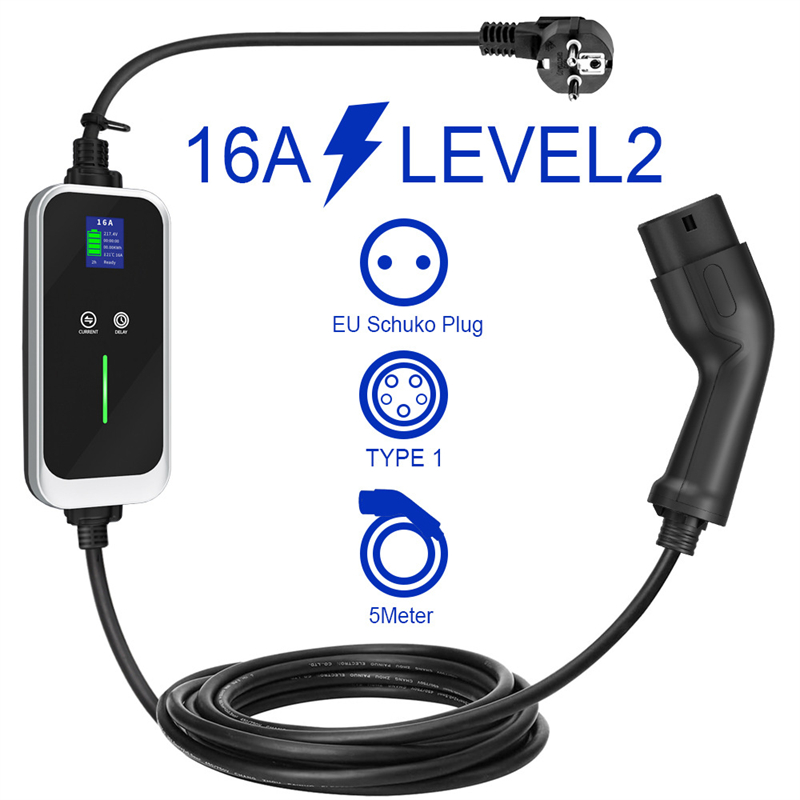

Mode 2 EV Charger 3.6kW 16A Portable Charging Cable Electric Car Charger with Type 2 Plug
Short Description:
Rated current:16Amp (6A/8A/10A/13A/16A)
Operating voltage: 110V~250V AC
Insulationresistance: >1000MΩ
Terminal temperature rise: <50K
Withstand voltage: 2000V
Working temperature: -30°C ~+50°C
Contact impedance: 0.5m Max
- Description
Quick Detail:
Different names for products:
Portable EV Charger
Plug-in Charger
Applications:
Home Charging
Travel Charging
Public Charging
Description:
Benefits of having a portable EV charger for EV owners
Public Charging:When away from home, portable chargers enable EV owners to charge their vehicles at public locations with standard electrical outlets.
Emergency Charging:Portable EV chargers can serve as a backup in emergency situations where access to regular charging stations is limited.
Features:
Adjustable Power Levels：Ranging from 6A/8A/10A/13A/16A to accommodate different power sources and charging speeds.

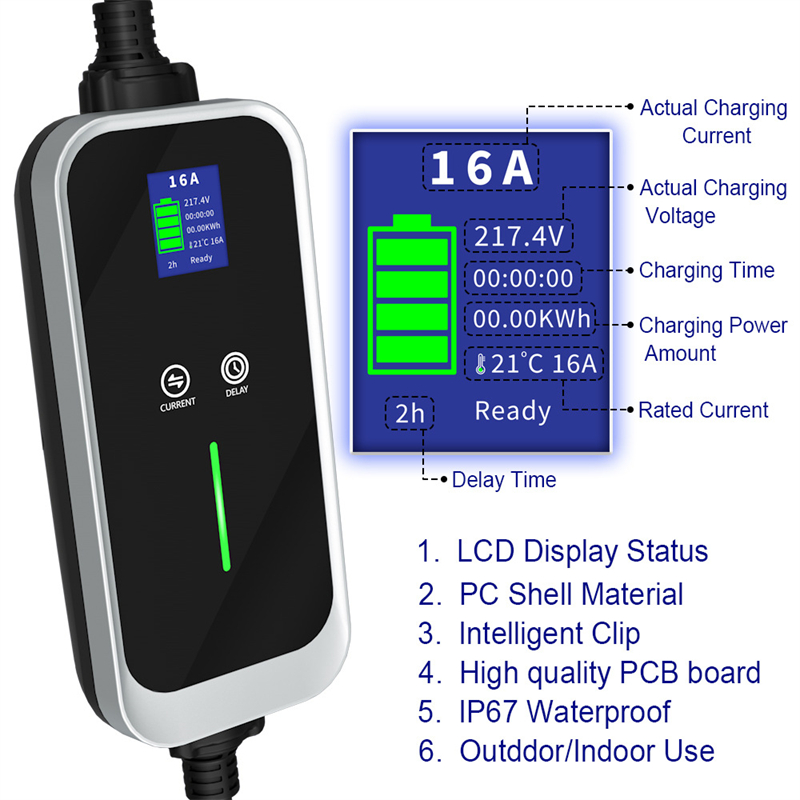

LED Indicators:LED lights or indicators provide status information, indicating whether the charger is actively charging, fully charged, or if there are any issues.
Specifications:
| Input | ||
| Power Supply | 1P+N+PE | 1P+N+PE |
| Input Rated Voltage | AC 110V~250 V | AC 110V~250 V |
| Input Rated Current | 16A | 32A |
| Input Frequency | 50/60Hz | 50/60Hz |
| Output | ||
| Output Power | 3.6kW | 7.2kW |
| Output Voltage | AC 110V~250 V | AC 110V~250 V |
| Output Current | 6A/8A/10A/13A/16A(Adjustable or Fixed) | 10A/16A/20A/24A/32A(Adjustable or Fixed) |
| User Interface | ||

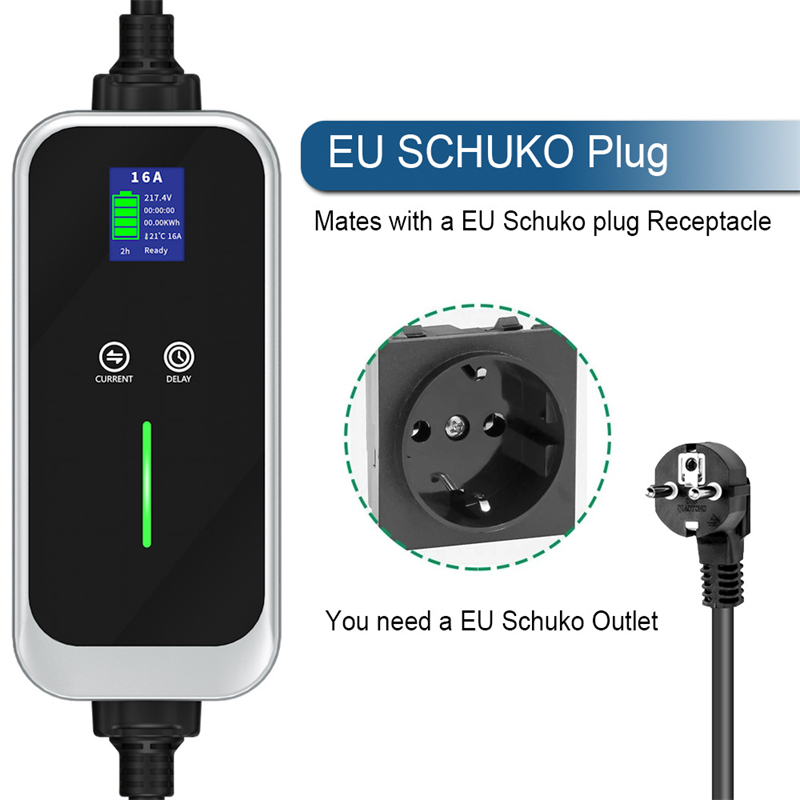

| Charging Connector | Type2 plug+EU plug（customizable） | Type2 plug+CEE plug(customizable) |
| Charging Cable Length | 5m TPU | |
| Shell Material | PC plastic | |
| Leakage Protection | Type A RCD or Type A RCD+DC 6mA(Optional ) | |
| EV Control Box Size(L×W×H) | 220×100×56mm | |
| LCD Display | Temperature,Charging Time,Actual Current,Actual Voltage,Actual Charging Power,Delay Time | |
| Function | Delayed Charging +Current Switching | |
| Environmental | ||
| Operating Temperature | -25℃ to 55℃ | |
| Storage Temperature | -40℃ to 80℃ | |
| Humidity | 5% to 95% no condensation | |
| Altitude | ≤2000m above sea level | |
| Safety | ||
| Ingress Protecion | IP67 | |
| Contact Resistance | 0.5mΩ Max | |
| Flame Retardant Grade | UL94 V-0 | |
| Withstand Voltage | 2000V | |
| Mechanical Durability | Plug in/Pull out ＞10000 times | |
| Protection | Over / Residual Current , Over / Under Voltage, Over / Low Temperature, Integrated surge protection, etc. | |
| Certification | CE, TUV, UKCA approved | |
