●Plug & Play, Effortless Installation

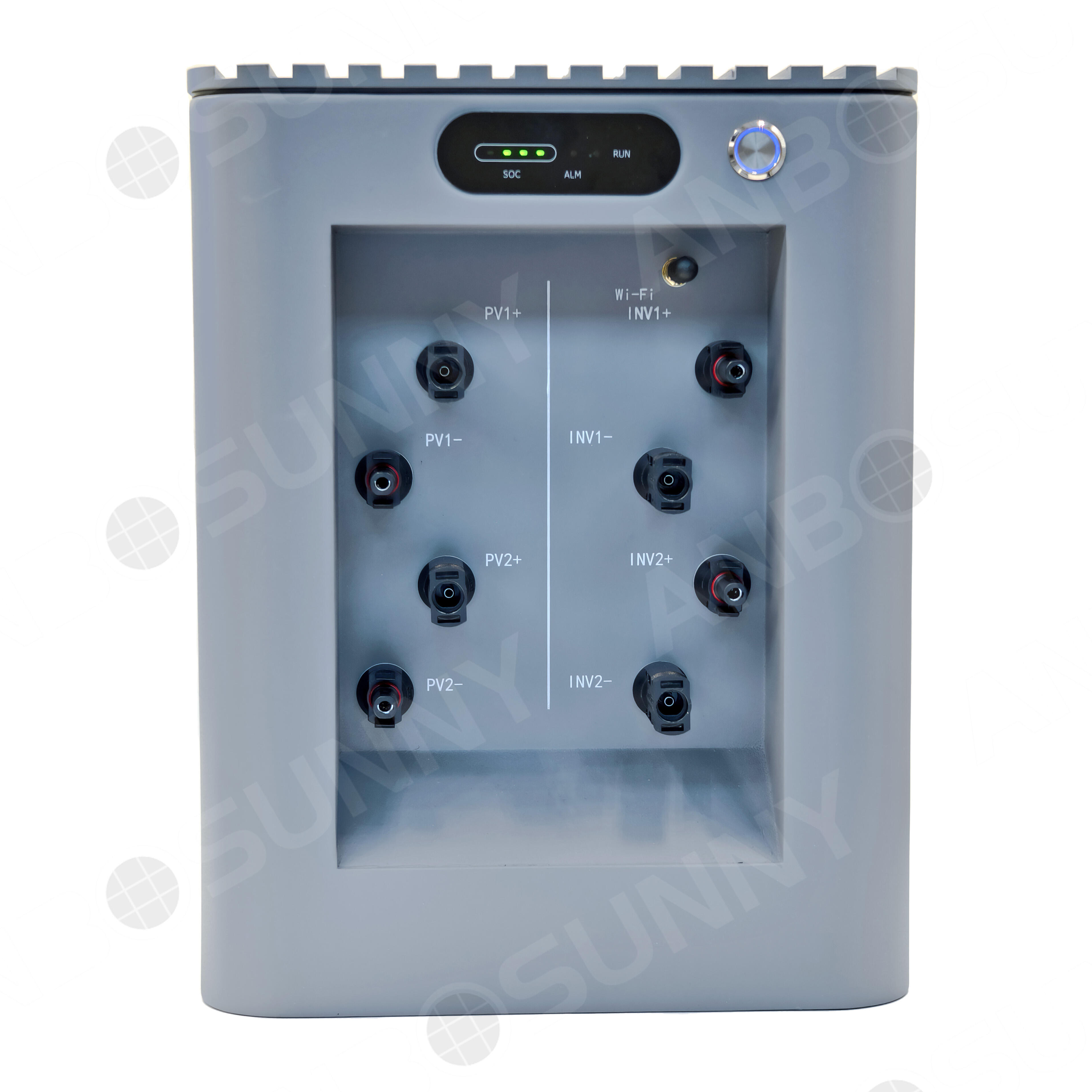

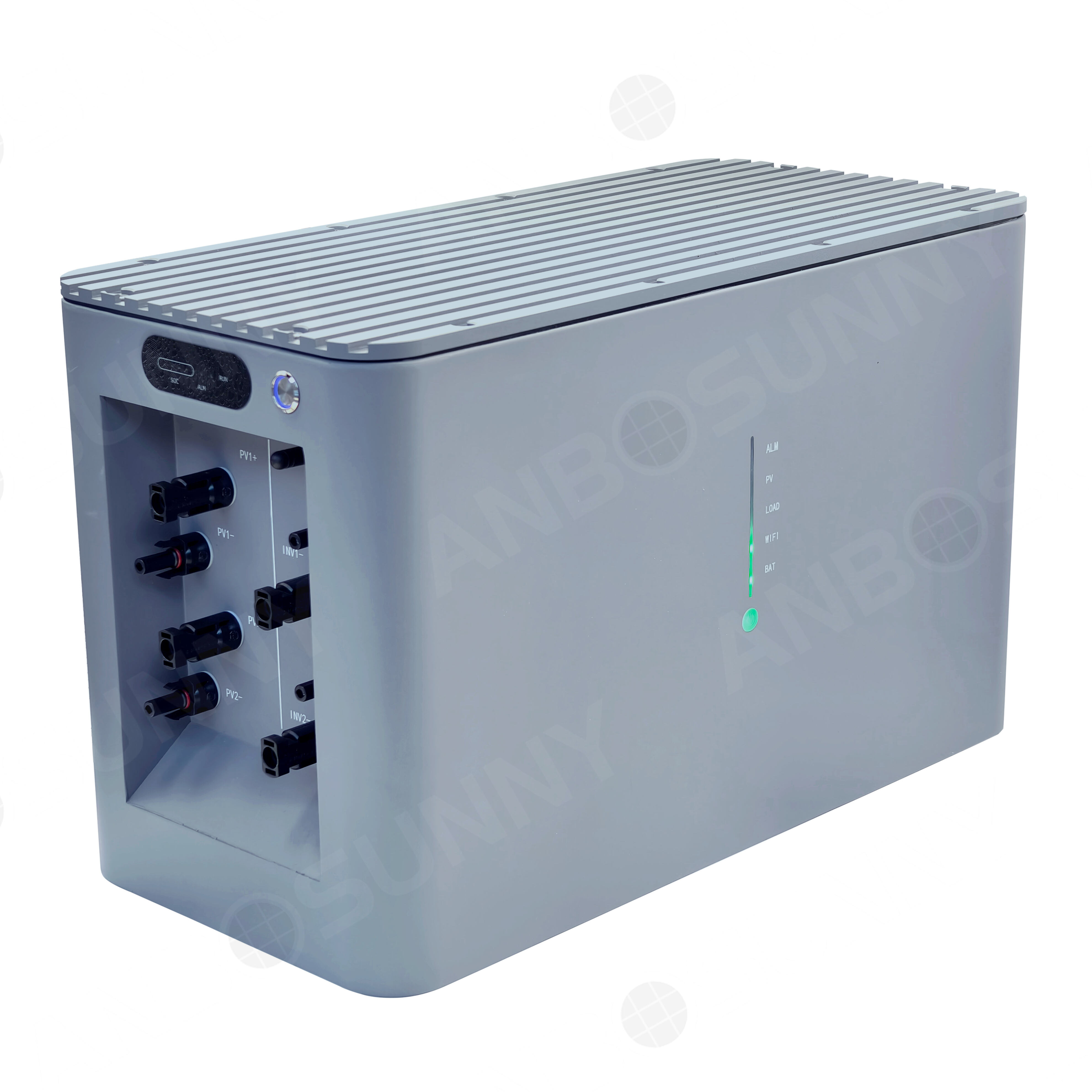

●The host battery is All-In-One with a 2kWh battery and a 1600W PV hub

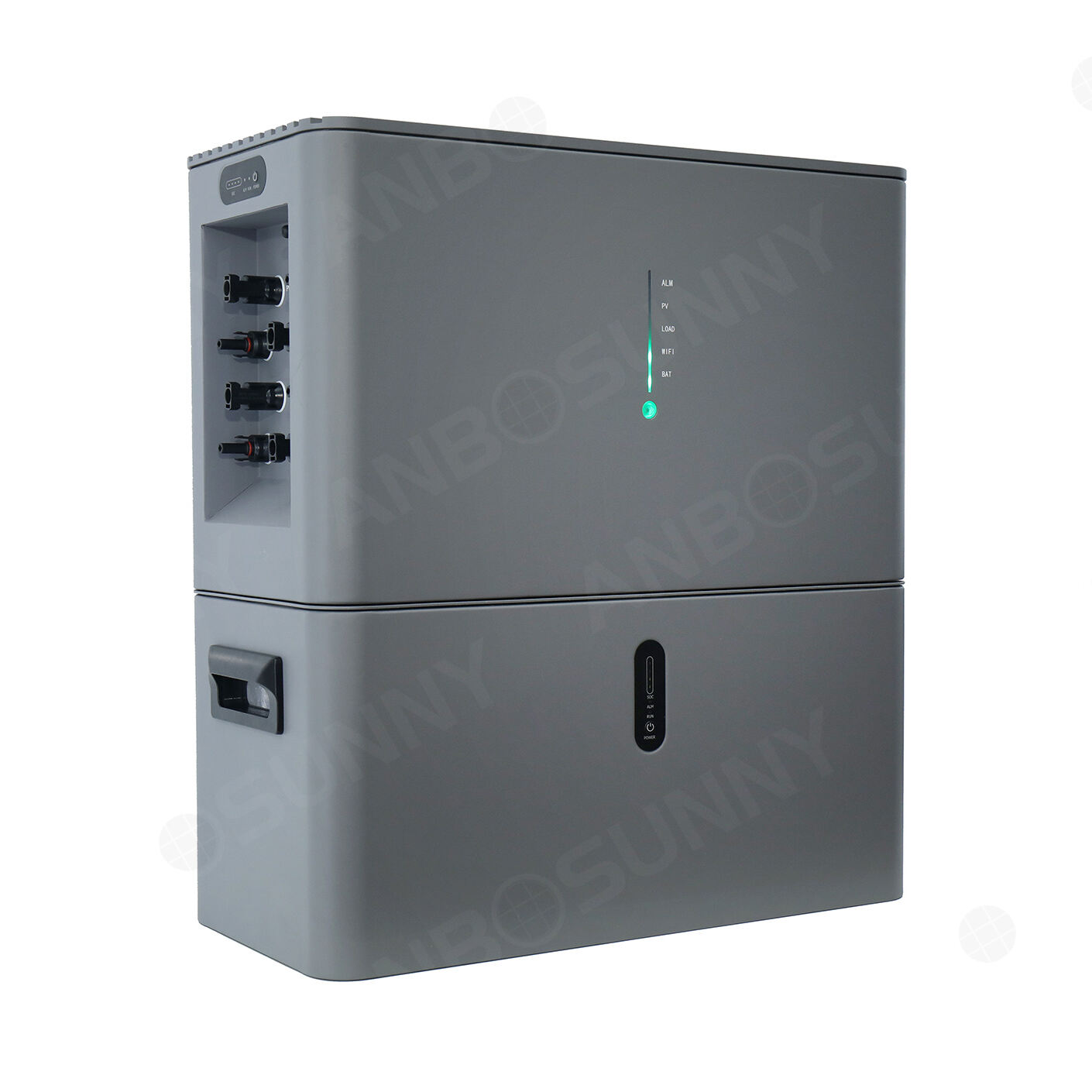

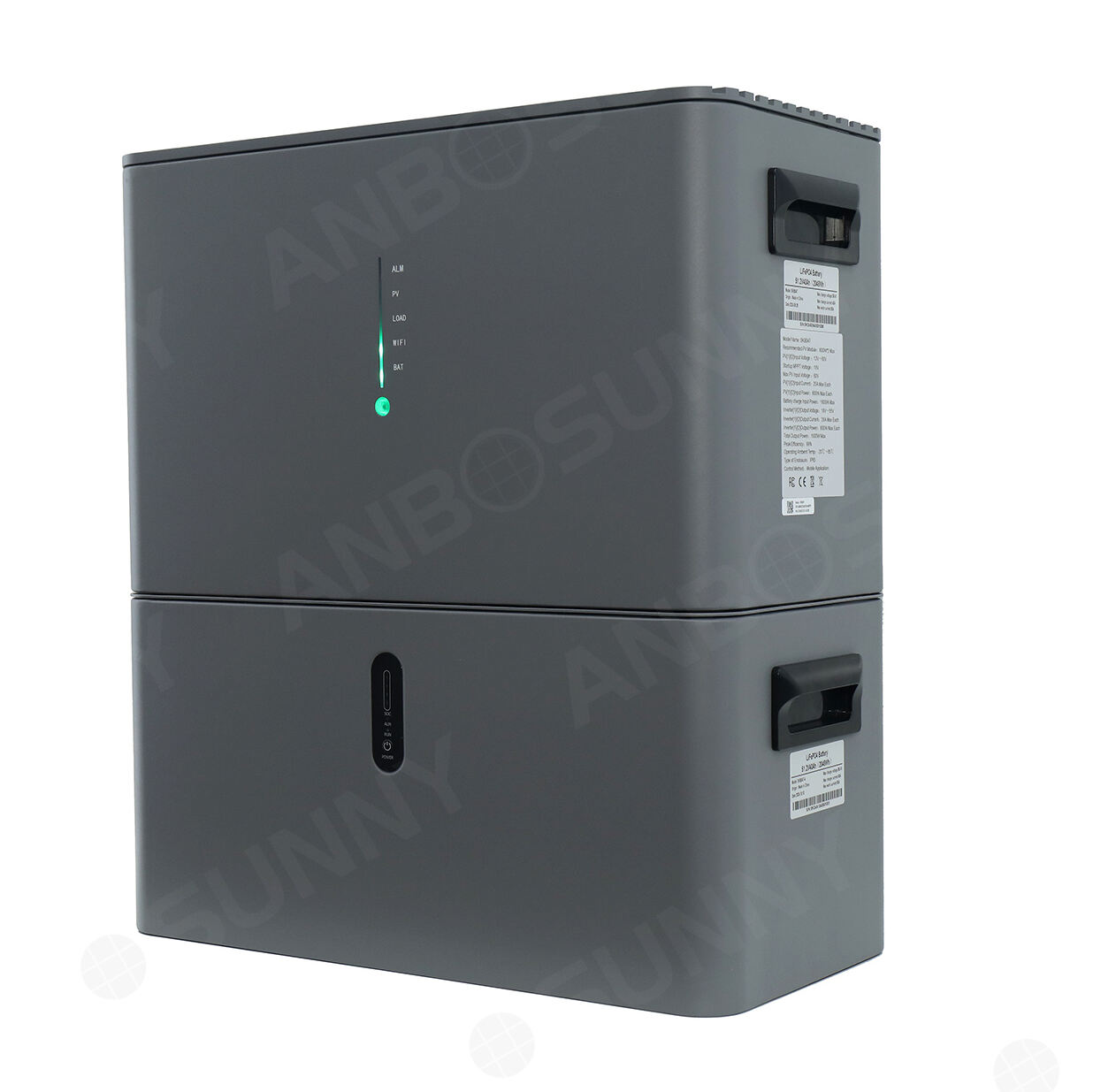

●The slave battery at the capacity of 2kWh is optional，max up to 8kWh
(1 unit host battery + 3 units slave battery)
●Seamlessly integrating with a balcony micro solar system
Click here to submit your RFQ, an even more favorable QUOTE will be offered within 1 day
Inquiry
Specification
| Battery | |||
| Battery Type | LiFePO4 | ||
| Rated Voltage | 51.2V | ||
| Battery Capacity | 2048WH | ||
| Cycle Life | 6000（25℃) | ||
| Discharge Depth | 90% | ||
| Maximum Charging Current | 50A | ||
| DC Input (PV Input) | |||
| Maximum Input Power | 800W ×2 Max | ||
| MPPT Voltage Range | 18V-60V | ||
| Start-up Voltage | 12V | ||
| Operating Voltage Range | 12V-60V | ||
| Input Conversion Efficiency | 98% Max | ||
| Maximum Input Voltage | 60V | ||
| Maximum Input Current per Channel | 25A | ||
| Maximum Input Short-circuit Protection Current (Transient) per Channel |
90A | ||
| Number of MPPT Tracking | 2 | ||
| MPPT Tracking Efficiency | 99% | ||
| DC Output (INV Output ) | |||
| Maximum Output Power | 800W ×2 Max | ||
| Output Conversion Efficiency | 98% Max | ||
| Operating Voltage Range | 18V~55V | ||
| Maximum Output Voltage | 55V | ||
| Maximum Output Current per Channel | 28 | ||
| Maximum Input Short-circuit Protection Current (Transient) per Channel |
90A | ||
| General Parameters | |||
| Product Dimensions | 480mm×230mm×296mm | ||
| Net Weight | ≈23kg | ||
| Maximum Number of External Parallel Slave Battery Packs |
3 PCS | ||
| Capacity of a Single Slave Battery Pack | 2048WH | ||
| Dimensions of a Single Slave Battery Pack | 480mm×230mm×240mm | ||
| Net Weight | ≈20kg | ||
| Charging Operating Temperature | 0℃ ~ 55℃ | ||
| Discharging Operating Temperature | -20℃~60℃ | ||
| Protection Grade | IP65 | ||
| Communication Mode | Wi-Fi | ||
| Heat Dissipation Mode | natural cooling | ||
