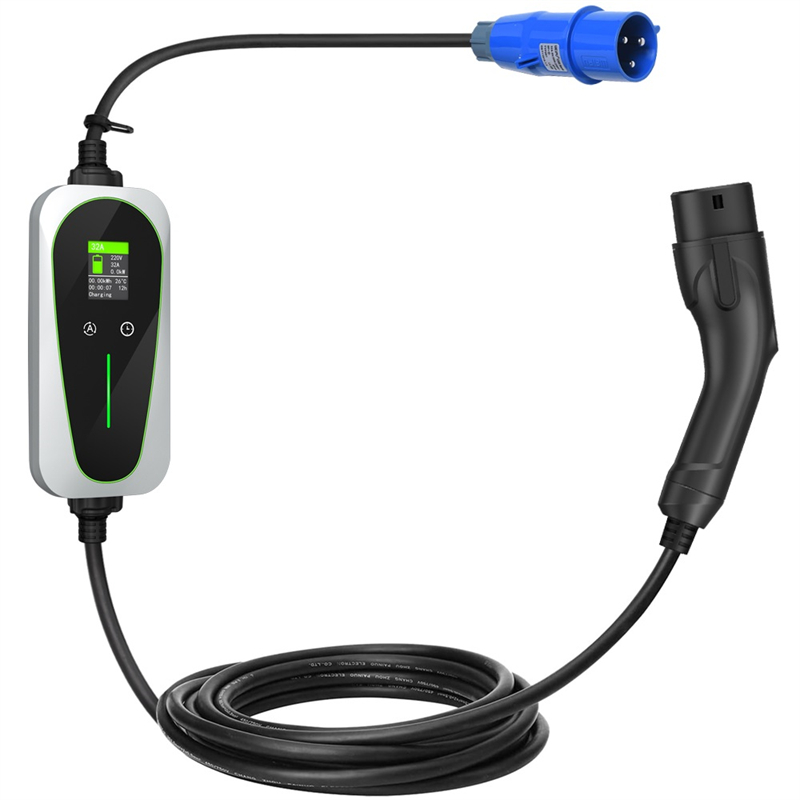

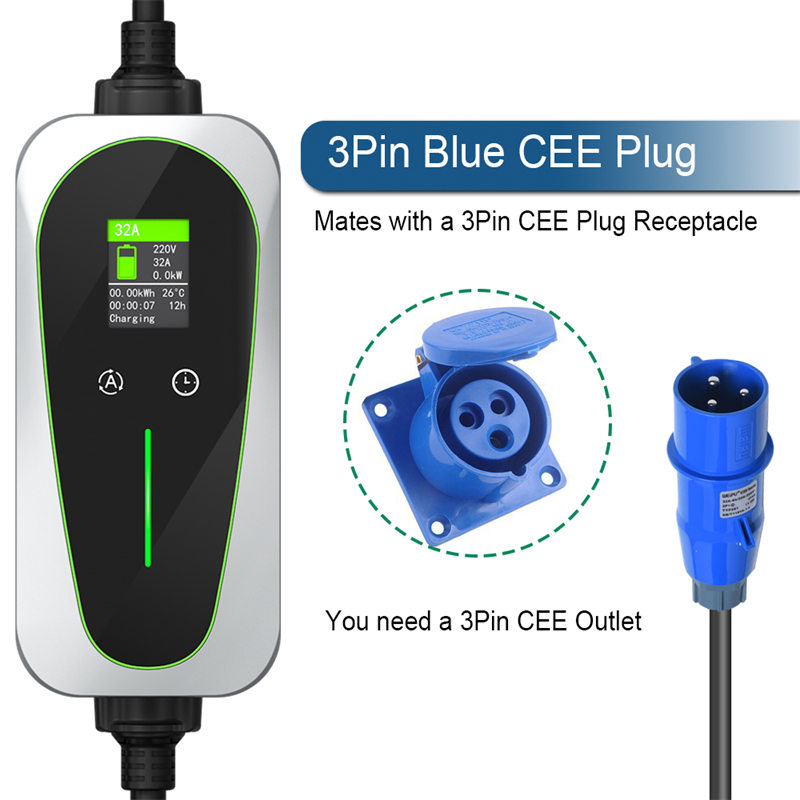

10A 16A 20A 24A 32A Current Adjustable 7KW Home Charger GBT EV Portable Charger With 3Pin Bule CEE Plug

Short Description:

Rated current:32Amp (10A/16A/20A/24A/32A)

Operating voltage: 110V~250V AC

Insulationresistance: >1000MΩ

Terminal temperature rise: <50K

Withstand voltage: 2000V

Working temperature: -30°C ~+50°C

Contact impedance: 0.5m Max


  • Description
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry

Quick Detail:

Different names for products:

Portable EV Charger

On-the-Go Charger

Applications:

Home Charging

Emergency Charging

Workplace Charging


Description:

Benefits of having a portable EV charger for EV owners

Safety Features:Built-in safety features, such as overcurrent protection and temperature control, contribute to the safe and reliable charging of electric vehicles.

Weather Resistance:Our portable chargers are designed to be weather-resistant, allowing for outdoor use in various weather conditions.

Features:

Adjustable Power Levels:Ranging from 6A/8A/10A/13A/16A to accommodate different power sources and charging speeds.

Plug-and-Play Operation:Portable chargers are often designed for user-friendly plug-and-play operation, requiring minimal setup.

Smart Connectivity:Our advanced chargers offer smart connectivity features, allowing users to monitor and control charging through a mobileAPP.


Specifications:

Input
Power Supply1P+N+PE1P+N+PE
Input Rated VoltageAC 110V~250 VAC 110V~250 V
Input Rated Current16A32A
Input Frequency50/60Hz50/60Hz
Output
Output Power3.6kW7.2kW
Output VoltageAC 110V~250 VAC 110V~250 V

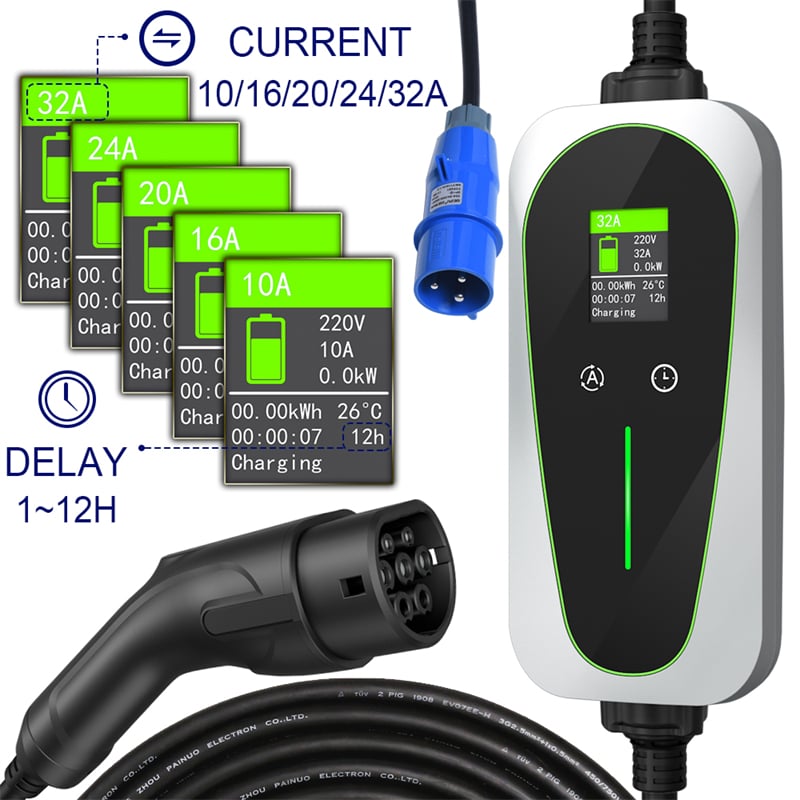

Output Current6A/8A/10A/13A/16A(Adjustable or Fixed)10A/16A/20A/24A/32A(Adjustable or Fixed)
User Interface

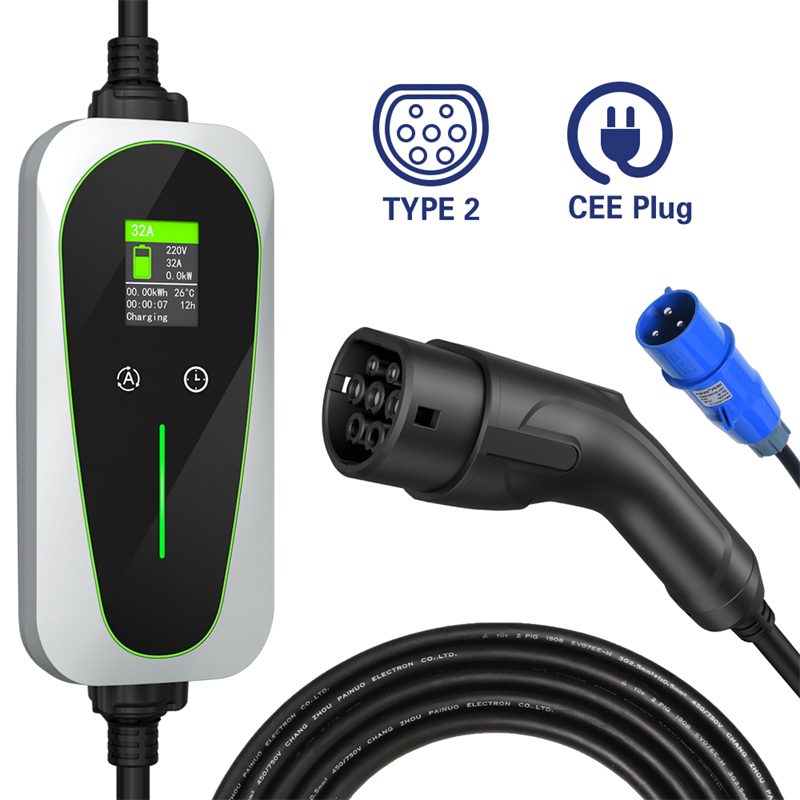

Charging ConnectorType2 plug+EU plug(customizable)Type2 plug+CEE plug(customizable)
Charging Cable Length5m TPU
Shell MaterialPC plastic
Leakage ProtectionType A RCD or Type A RCD+DC 6mA(Optional )
EV Control Box Size(L×W×H)220×100×56mm

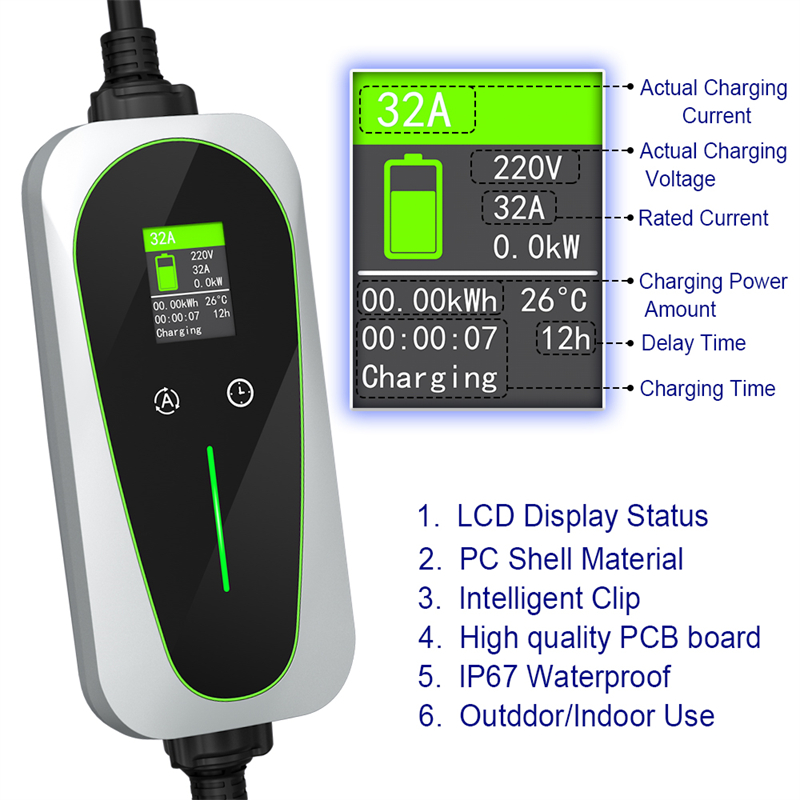

LCD DisplayTemperature,Charging Time,Actual Current,Actual Voltage,Actual Charging Power,Delay Time
FunctionDelayed Charging +Current Switching
Environmental
Operating Temperature-25℃ to 55℃
Storage Temperature-40℃ to 80℃
Humidity5% to 95% no condensation
Altitude≤2000m above sea level
Safety
Ingress ProtecionIP67
Contact Resistance0.5mΩ Max
Flame Retardant GradeUL94 V-0
Withstand Voltage2000V
Mechanical DurabilityPlug in/Pull out >10000 times
ProtectionOver / Residual Current , Over / Under Voltage, Over / Low Temperature, Integrated surge protection, etc.
CertificationCE, TUV, UKCA approved
